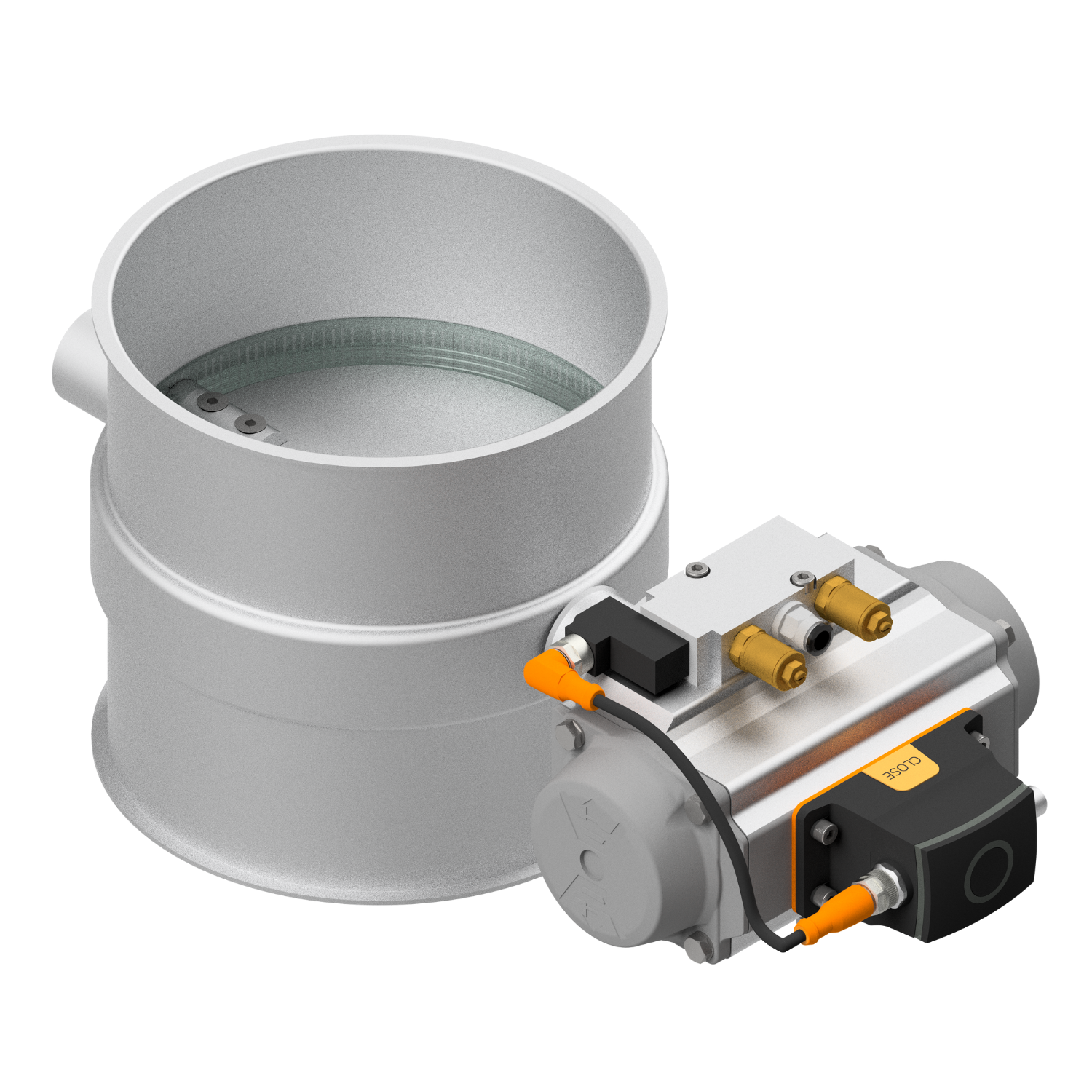

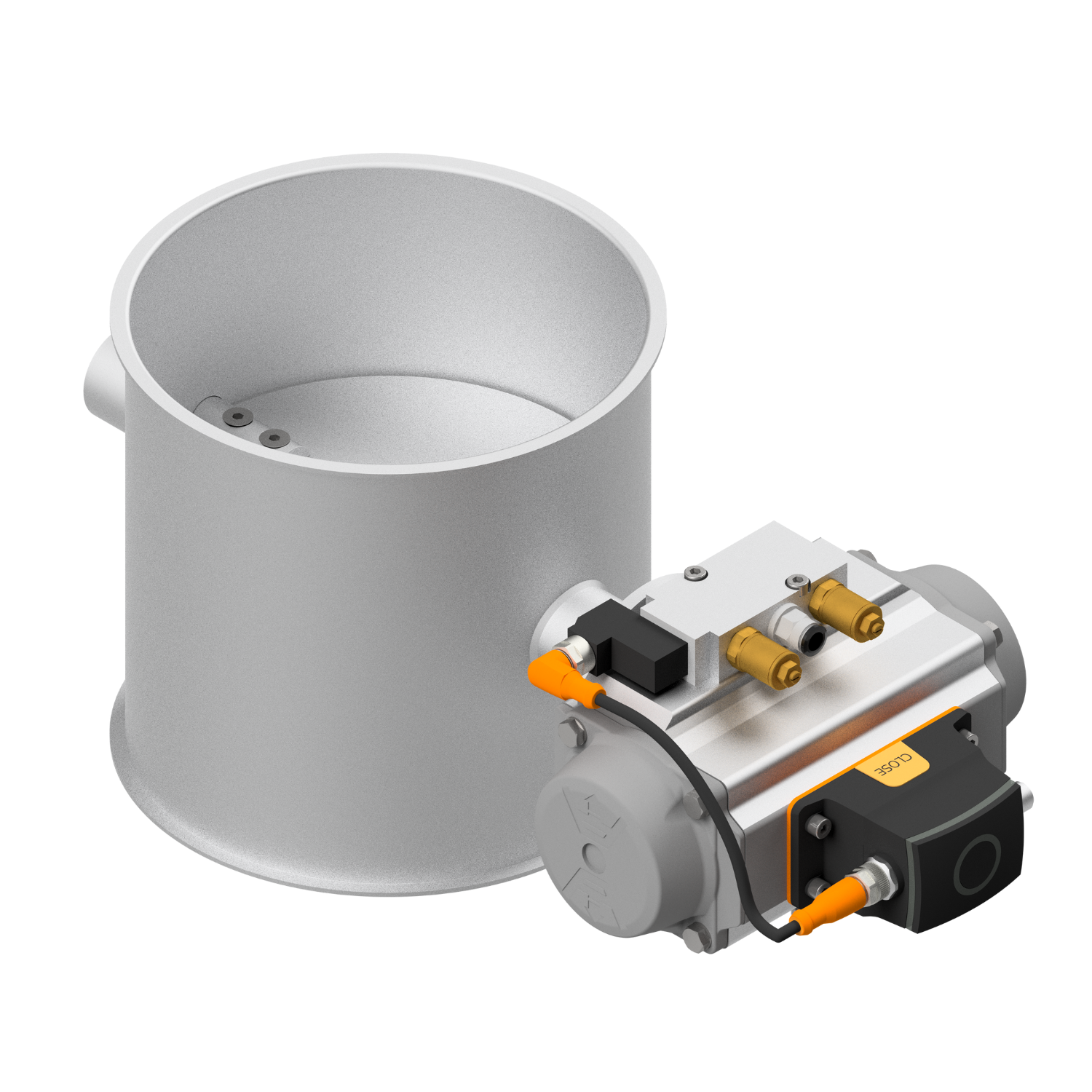

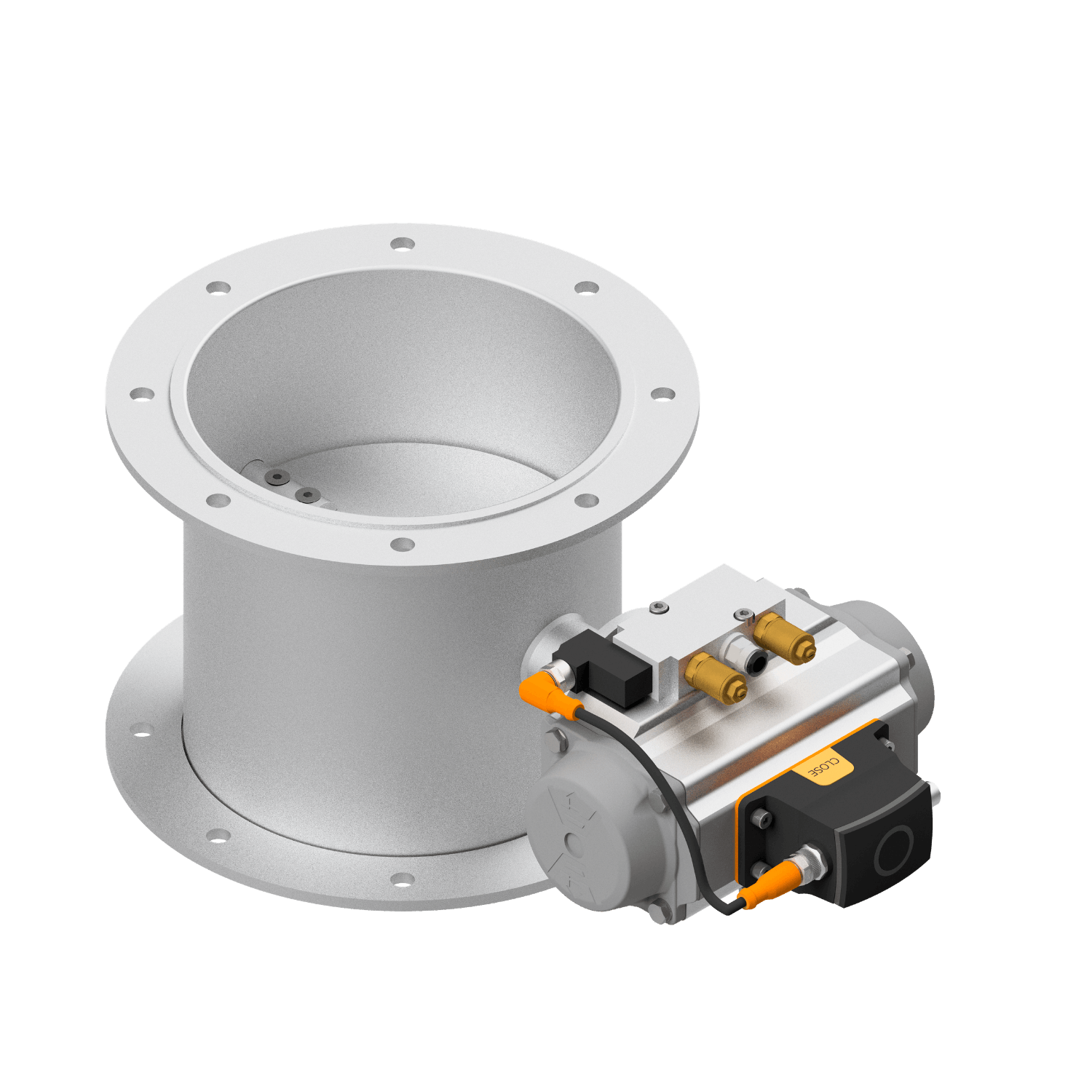

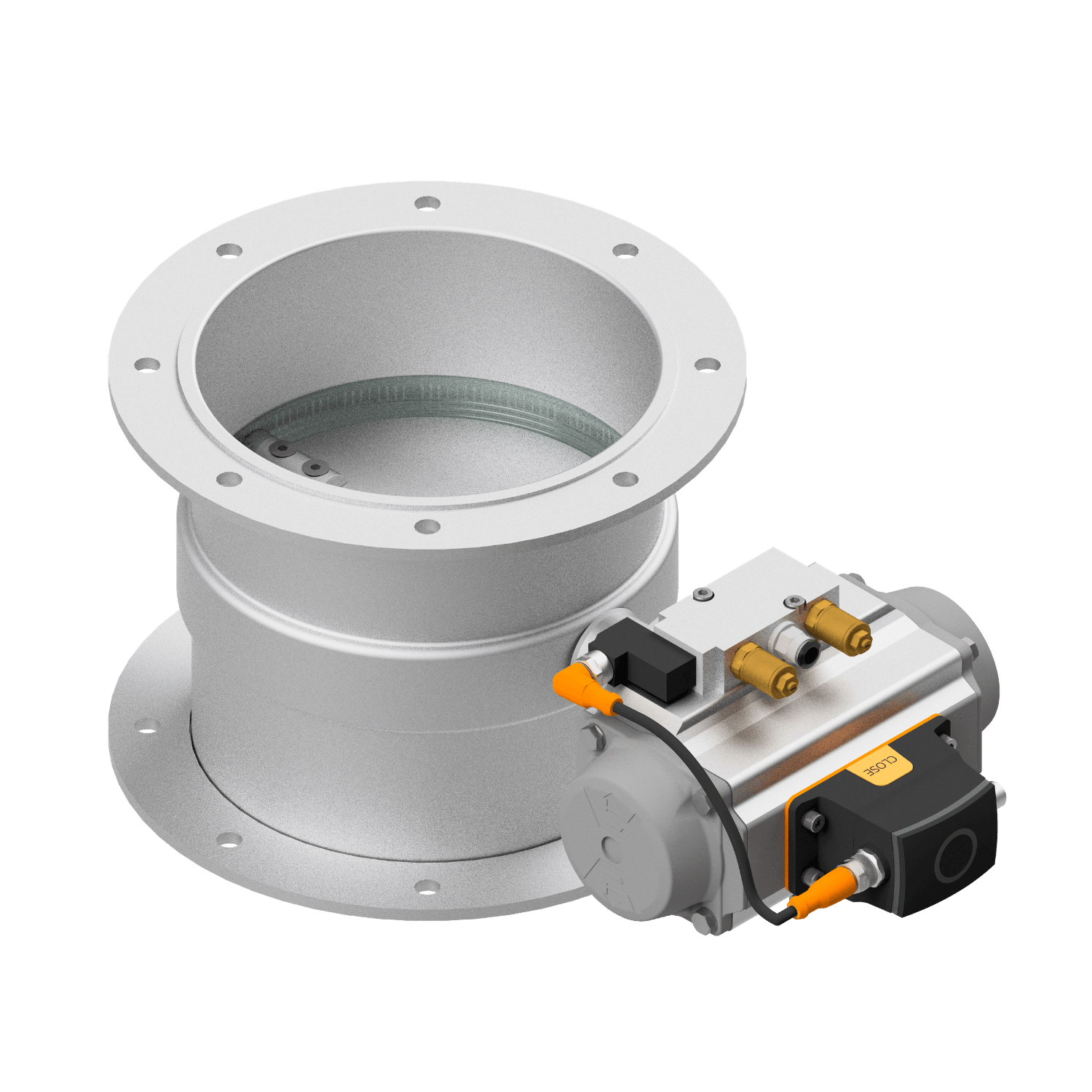

Stop valve, 1.0330, powder coated, rotary actuator
Stop valve, 1.0330, powder coated, rotary actuator
Specifications
Specifications
General informations
General informations
MATERIALS
- Steel 1.0330
- Stainless Steel 1.4301
- Other qualities on request
- Other qualities on request
MATERIAL SURFACES
Powder coating:
Our standard:- Colour: Based on RAL 7032 (pebble grey)
- Surface: Silk gloss
- Average layer thickness: 30–60 μm (layer thickness required for a scratch- and impact-resistant surface)
- Temperature range: -60°C to +120°C
- No impairment of appearance is to be expected at temperatures up to +80°C.
- Indoor use: Visually opaque coating (temporary corrosion protection)
Other colours are available on request:
- Costs for different powder coating: 10% of the gross price of the components to be coated (subject to availability of the colour)
- Dampers and slides are excluded. The following additional costs apply:
- 25,00 € per component without drive
- 40,00 € per component with drive
- Additional one-off set-up costs per colour application: 45.00 € net.
- Products generally excluded from powder coating:
- Plexiglas pipes, blind covers for clamping ring connections, perforated grilles, additional air covers and throttles, clamping rings and pipe clamps.
- Plexiglas pipes, blind covers for clamping ring connections, perforated grilles, additional air covers and throttles, clamping rings and pipe clamps.
Galvanisation:
Hot-dip galvanisation:
- Advantages over powder coating:
- Better protection against corrosion (ensures corrosion protection throughout the entire service life)
- Excellent resistance to atmospheric stress
- Better protection against corrosion (ensures corrosion protection throughout the entire service life)
- Process: According to DIN EN ISO 1461
- Temperature resistance: max. 200°C (continuous max. 150°C recommended).
- Surface: Galvanising process may result in colour and structure irregularities.
- Area of application: Primarily for components with moving parts
- Average layer thickness: approx. 10 μm
- Temperature resistance: max. 120°C (max. 80°C recommended for continuous use).
Stainless steel-blasting:
- Implementation: In an overhead conveyor blasting system (automatic)
- Process: Treatment on all sides using spherical stainless steel blasting media.
- Objective: Surface finishing to achieve a uniform and ferrite-free structure for optimum workpiece appearance.
- Roughness: approx. Ra 1.3 μm
- Temperature resistance: max. 550°C
TOLERANCES
- Pipe diameter and roundness: DIN EN 10296-1
- Lips: 6 mm ± 1 mm
- Length and angle dimensions: DIN ISO 2768 Part 1, tolerance class v,
angle tolerance ± 1°
The sheet thickness may change in drawn or ground components.
USE OF CONNECTING ELEMENTS
- Our recommendation: Clamping rings DN 80 – 300 | Flanges DN 315 – 710
- Clamping rings with sealing compound: Gravity bulk material conveying and ventilation systems without special requirements for tightness and durability of the connection.
- Clamping rings for sealing rings: bulk material conveyance and ventilation systems
- Flanges: bulk material conveyance and ventilation systems with special requirements, especially for larger diameters.
SPECIAL CLIMATIC CONDITIONS
Components for use outside temperate, continental climate zones are available on request.
OPERATING INSTRUCTIONS
Operating instructions are provided in German and English as standard.
DATA SHEETS / CAD DATA
Further information can be found at www.noro-rohre.de.
MINIMUM QUANTITY SURCHARGE
For orders with a net value of less than 100.00 €, we charge a minimum quantity surcharge of 40.00 € net.
ATEX
Our ATEX-compliant pipe components are available for Zone 22 (dust). ATEX-compliant versions are available on request.
